Fun with DIY Box Fans (and Protection from Covid through Filtration and Better Ventilation)

Posted on by

By Lambert Strether of Corrente.

Improved ventilation is one way to protect yourself from Covid (and whatever future respiratory-driven pandemics are coming down the pike). The Journal of American Medicine summarizes the current state of the science and the engineering in “Indoor Air Changes and Potential Implications for SARS-CoV-2 Transmission,” April 16, 2021.

Controlling concentrations of indoor respiratory aerosols to reduce airborne transmission of infectious agents is critical and can be achieved through source control (masking, physical distancing) and engineering controls (ventilation and filtration). With respect to engineering controls, an important flaw exists in how most buildings operate in that the current standards for ventilation and filtration for indoor spaces, except for hospitals, are set for bare minimums and not designed for infection control…..

To reduce far-field airborne transmission of SARS-CoV-2 in small-volume indoor spaces (eg, classrooms, retail shops, homes if guests are visiting), the suggestions include targeting 4 to 6 air changes per hour, through any combination of the following: outdoor air ventilation; recirculated air that passes through a filter with at least a minimum efficiency rating value 13 (MERV 13) rating…

Those are the specs, then.

….or passage of air through portable air cleaners with HEPA (high-efficiency particulate air) filters.

We won’t be looking at portable air cleaners in this post. Instead, we’ll look at DIY box fans to filter the air, and increase air changes per hour. And just to let JAMA hammer home airborne transmission yet once more:

Despite the dose-response for SARS-CoV-2 being unknown, and continued scientific debate about the dominant mode of transmission, evidence supports these suggestions. First, SARS-CoV-2 is primarily transmitted from the exhaled respiratory aerosols of infected individuals. Larger droplets (>100 μm) can settle out of the air due to gravitational forces within 6 feet, but people emit 100 times more smaller aerosols (<5 μm) during talking, breathing, and coughing. Smaller aerosols can stay aloft for 30 minutes to hours and travel well beyond 6 feet. Second, high-profile and well-described SARS-CoV-2 outbreaks across multiple space types (eg, restaurants, gyms, choir practice, schools, buses) share the common features of time indoors and low levels of ventilation, even when people remained physically distanced.

Third, these suggestions are grounded in the basics of exposure science and inhalation dose risk reduction. Higher ventilation and filtration rates more rapidly remove particles from indoor air, thereby reducing the intensity of exposure and duration that respiratory aerosols stay aloft inside a room. Fourth, this approach is consistent with what is used in hospitals to minimize risk of transmission

To the box fans! On the personal level, making an anti-covid box fan could be a fun project if you’re good at DIY (which I am not, so please bear that in mind). Institutionally, CDC’s blather about layered strategies has managed to leave hygiene theatre firmly ensconced in the minds of officialdom (see e.g. at “deep cleaning”), which means that schools, especially, may not spend money on ventilation, not even HEPA air cleaners. Hence the need for a cheap, DIY ventilation solution. (How to bring in outside air by getting doors and windows open, especially windows that have been sealed or even painted shut, is another question entirely. For them, I can’t think of any solution that doesn’t start with removing a pane, and moving on from there.)

The box fans serve two purposes: One is to circulate air and dilute the virus, as well as bringing in air from the outside, if there is a draft. The second is to filter the air to remove particles from it, including aerosols. Since air circulation is more or less a given with a fan, most of the focus here will be on the filters. Box fan designs come in two flavors; type (A) uses an actual “box fan” with a filter attached (the square kind you place on the floor or in a window); type (B) is a cube made from filters, a box on which a box fan is placed.

(A) Here’s a video that shows how to assemble a box fan with a MERV 13 filter:

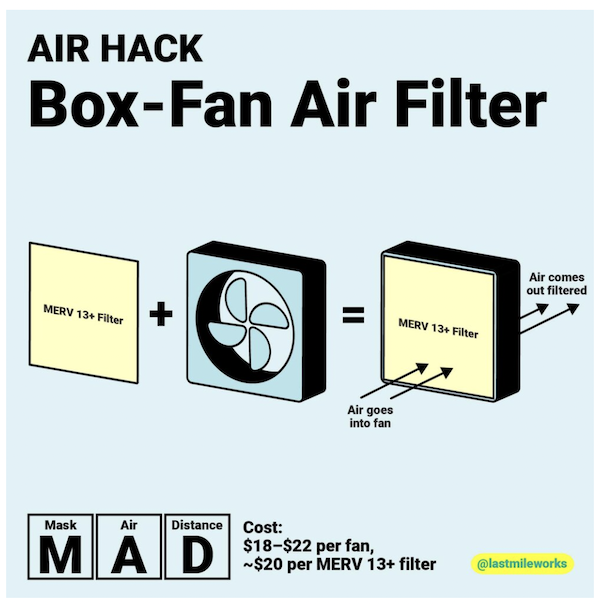

(There is also a double-filter design shown at the end.) Here is a handy diagram:

Note that the fan pulls air through the filter. You will need to position the MERV filter’s airflow arrow accordingly.

From my reading, there seem to be two issues with the box fan: Fastening, and leakage.

For fastening the filter to the fan, the video uses what looks like blue painter’s masking tape. The classical solution would be, of course, duct tape. Duct tape leaves a sticky residue, icky when changing the filters. Painter’s masking tape does not, but secures the filter less effectively. An alternative is to use a rubber bands, shown here:

Leakage takes because there’s a gap between the filter and the fan. The video says it’s fine (and all the air is going to go through the filter at some point). Other implementations seal the gap with duct tape all around (icky). Obsessives seal the gap with putty (hard to change the filter). Finally, designers noticed leakage on the back of the fan:

Something we at Pirie noticed when implementing this solution is that the box fan wants to move a lot of air and adding the filter to one side causes the fan to draw additional air from the non-filter side, especially in the corners. We created and installed a cardboard shield on the opposite side of the fan to block the corners. In our unscientific testing (by feeling the air on the outside of the filter) this shield increased the airflow through the filter.

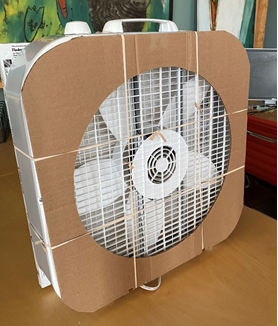

The cardboard shield:

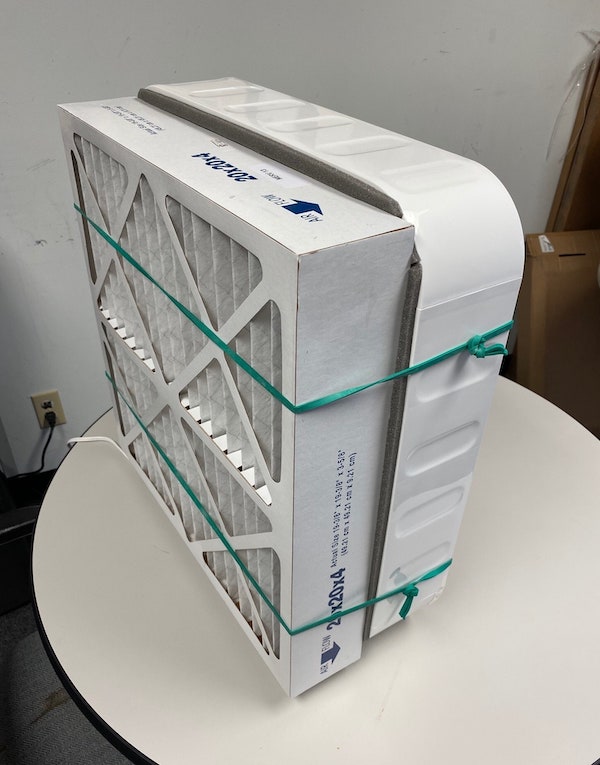

Since the rubber-band diagram has gaps, and was put together by Jim Rosenthal, CEO of Tex-Air Filters, a filter manufacturer in Texas, I’m inclined to believe that leakage doesn’t matter much. (Perhaps the fan’s motor is more likely to overheat if all the air must be pulled through the filter?)

(B) Here’s a video from This Old House that shows how to assemble a box fan cube. I must confess I enjoyed seeing the craftspersons of This Old House duct-taping filters and a fan together, instead of, say, creating a spiral staircase from one tree-trunk using a single chisel, a project more typical of them:

(The first part of the video includes a really useful discussion of MERV filters and home HVAC systems.) Here is a screen dump of the finished article. Sloppy tape work, guys!

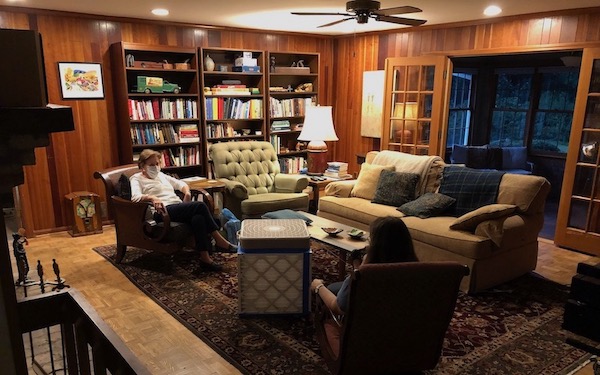

And in the home:

Why a cube? Blue House Energy explains:

The challenge with filters is they create a barrier between the fan and the room, slowing down the amount of air that gets delivered. Filters that are more tightly woven, catching more of the smaller PM2.5 also make it harder for air to pass through. This creates a decrease in air flow and a higher pressure drop.

So there are concerns about overheating the fan motor when you add a high-MERV filter. The pressure drop makes the fan work harder to push air through the fan. The tent and box versions reduce pressure drop by increasing the amount of filter surface area, decreasing the effect of air resistance. Bonus points: more filter surface area means you don’t have to replace the filters as often.

Do box fans work? According to Tex-Air filters (quoted in Wired above) they do:

The current thinking is that particles containing viable Covid-19 viruses start at about one micron. Particles less than 5 microns settle out of the air very slowly. They can remain airborne for hours. These particles are called aerosols and are one of the major methods for transmission of Covid-19. Consequently, the one to five micron particle size range is a good target for filter removal.

So how did we do in our tests with our “Box Fan with a MERV 13 filter” cleaning device? In the tool room, the device removed 59.7% of the one micron sized particles and 86.4% of the five micron sized particles. In the breakroom, the device removed 74.6% of the one micron sized particles and 80% of the 5 micron sized particles. In short, the results show meaningful reductions in the target particle size range. The “Box Fan with a MERV 13 Filter” should be a useful tool in the fight against Covid-19..

One thing we need to make clear – this device is not a HEPA air purifier. It does not have a Clean Air Delivery Rate (CADR) which is the standard for measuring the effectiveness of air cleaners. Purchasing and using a HEPA air purifier is the better option. However, their cost may be prohibitive. In this case the “Box Fan with a MERV 13” filter is a reasonable option.

A few more random points before closing:

(1) Buy MERV13+ filters now in case there are shortages later due to supply chain issues.

(2) Box fans work with wildfire smoke too:

(3) For institutions, have a communications strategy:

Just because it’s duct-taped together doesn’t mean it doesn’t work!

(4) TexAir measured its particle counts with a Lighthouse IAQ Handheld Particle Counter 3016-IAQ, which costs $3500. If that’s a little rich for your blood, you can at least get a reading on the effectiveness of the box fan’s ventilating power with a C02 meter, where CO2 is a proxy for air into which people have breathed, talked, sung, or shouted, and hence for viral load. Stale air will have a high reading; enough air changes per hour will give you a low reading. The Aranet4 seems to be a fan favorite:

I believe that 500 is the number you want to see.

* * *

As with masks, there’s an enormous amount of DIY experiimentation going on with box fans. That makes me happy and hopeful. If any readers have experimented with box fans, or plan to, please share!

NOTES

[1] Here is a handy chart on commercial portable air cleaners:

Print Friendly, PDF & Email

This entry was posted in Guest Post, Pandemic on by .

About Lambert Strether

Readers, I have had a correspondent characterize my views as realistic cynical. Let me briefly explain them. I believe in universal programs that provide concrete material benefits, especially to the working class. Medicare for All is the prime example, but tuition-free college and a Post Office Bank also fall under this heading. So do a Jobs Guarantee and a Debt Jubilee. Clearly, neither liberal Democrats nor conservative Republicans can deliver on such programs, because the two are different flavors of neoliberalism (“Because markets”). I don’t much care about the “ism” that delivers the benefits, although whichever one does have to put common humanity first, as opposed to markets. Could be a second FDR saving capitalism, democratic socialism leashing and collaring it, or communism razing it. I don’t much care, as long as the benefits are delivered. To me, the key issue — and this is why Medicare for All is always first with me — is the tens of thousands of excess “deaths from despair,” as described by the Case-Deaton study, and other recent studies. That enormous body count makes Medicare for All, at the very least, a moral and strategic imperative. And that level of suffering and organic damage makes the concerns of identity politics — even the worthy fight to help the refugees Bush, Obama, and Clinton’s wars created — bright shiny objects by comparison. Hence my frustration with the news flow — currently in my view the swirling intersection of two, separate Shock Doctrine campaigns, one by the Administration, and the other by out-of-power liberals and their allies in the State and in the press — a news flow that constantly forces me to focus on matters that I regard as of secondary importance to the excess deaths. What kind of political economy is it that halts or even reverses the increases in life expectancy that civilized societies have achieved? I am also very hopeful that the continuing destruction of both party establishments will open the space for voices supporting programs similar to those I have listed; let’s call such voices “the left.” Volatility creates opportunity, especially if the Democrat establishment, which puts markets first and opposes all such programs, isn’t allowed to get back into the saddle. Eyes on the prize! I love the tactical level, and secretly love even the horse race, since I’ve been blogging about it daily for fourteen years, but everything I write has this perspective at the back of it.

Subscribe to Post Comments
23 comments

  1. ian

    My COVID office has been a converted garden shed. I had some 12V PC case fans lying around, so I made a filter box out of some scrap lumber and a 16×16 furnace filter (one of the 3M ‘filtrete’ ). It consumes about 5W so I leave it on all the time – it is very quiet. I calculated it cycles the air in the cabin about every 2 minutes and does a great job keeping dust down.

      1. o4amuse

        Gaffer’s tape as used in show biz is a non reflective cloth based tape. It is easy to tear and apply and removes without a sticky residue. It is also more expensive than the more common duct tape (aka “duck tape”) which has a reinforced vinyl base and often leaves residue or such crud behind.

        1. Vishal Kheman

          I have used gaffer’s tape to attach a filter to a box fan, and it absolutely will leave residue if it’s on there for more than a month. If it gets any direct sunlight exposure it’ll get baked on. I’m inclined to think any kind of adhesive tape is going to leave some goop behind.

          Strange fact, this site https://www.iallergy.com/pages/compare-3m-filtrete-filters claims that the pressure drop on 3M filters don’t scale with filtration efficiency, as I’d expect, but instead bounces around the 0.22 mark. It lists a pressure drop of 0.23 for the MPR 1000 filter, but a mere 0.19 for the MPR 1900! If true, then there’s no reason at all not to buy that filter, besides the minimal additional price.

  3. Katiebird

    How do you tell when it’s time to change the filter? For fire/smoke, it’s probably visible. But COVID-19 wouldn’t be. Would it?

    1. Lambert Strether Post author

      A very good question to which I don’t know the answer. I would imagine that all particles when concentrated at the filter, are visible as a discoloration. I don’t think the fact some particles might carry the virus would make a difference.

      Probably best to change the filters outside wearing gloves!

  4. redleg

    If something is stupid but it works, it’s not stupid.

    The box fan cube is a no-brainer when analyzed cost:benefit.
    I’ll bet the people who complained about these in classrooms are the same folks who vote “NO!!” every time a school funding bill is on the ballot, even if it’s for mechanical improvements that would directly benefit their own kids.

  5. bradford

    Nice article. A quibble for point (4): The CO2 meter won’t tell you much unless outside air is involved — if the filter system is just filtering the existing room air, it won’t change the CO2 levels, even as it clears all the COVID.

  8. JCC

    I set one of these up in my house a year ago due to the CA fires around here. I was surprised how quickly the filters turned brown, no more than a week, and usually quicker… and my home was a fairly long way from the majority of the fires. But with the prevailing West winds, it was obvious we were getting a lot of the air pollution.

    All it took was a decent furnace filter and double-sided tape.

    The other nice thing about this setup is that it reduced the smell of a week old campfire inside that I had noticed every morning upon waking.

    1. Ken

      A note about the filter thickness. The thicker the filter the longer it will last before clogging. The MERV rating tells us about the filters’ ability to trap certain size particles. The picture above showing a 4″ thick filter will give good service longer than, say, a 1″ thick filter of the same MERV rating.

      When you notice the air flow decreasing, it’s time to junk the filter. Put in a new one. A very small amount of dirt will pass through the filter–none are perfect. Clean fan blades and clean fan grille will flow more air.

  9. Leftist Mole

    I think this will be on my list to make. The smoke from the fires made my husband sick (we’re on the CA coast.) We have air cleaners but they weren’t good enough, and this year is looking to be a bad one.

  10. Mantid

    This is why I read NC. There are already decent sized fires (not to sound positive) in CA. Or. and TX (I think Texas). A box fan/filter combo is a near perfect solution to the fire smoke problem but I can’t stress enough: buy now! Last year, many stores were out of filters (eschew amazon) and fire season is all year. Respirators are quite effective too, especally in gardening or outdoor activities. Saw a few emergency responders wearing them contra Covid in their ambulances. They’ll become a fassion statement I am sure!

  11. polar donkey

    I made 2 box fan filters for my sons’ classrooms. I teacher used it. The other teacher wasn’t interested. Their school system didn’t do anything for ventilation with covid.

    1. ken

      For virus protection the best answer is lots of fresh air circulation. Bring in lots of new outside air and exhaust inside air. Filtering inside the room is good but second to fresh air.

      For smoke particle protection you want the windows mainly sealed. Recirculate and clean the inside air over and over. You can tape a high MERV filter over the open window that is letting in some fresh air, or affix a filtered fan to the window to clean the fresh outside air.
